Three Roll Mill Roller Materials: What the Cost and Wear-Life Numbers Actually Show

Three roll mill roller materials are the hardened metal or advanced ceramic rolls that do the actual grinding and dispersing inside the machine, and they split into two families-hardened metal and advanced ceramic-that alter your contamination risk, your wear schedule, and your total cost of ownership by amounts most spec sheets never show. This guide skips definitions and focuses on actual numbers: hardness, thermal behavior, real-world price comparison, and the variables that drive your cost, so you can decide whether ceramic is right for your specific application.

What Roller Materials Does a Three Roll Mill Actually Use?

A three roll mill uses rollers made from one of two material families: hardened alloy or cast iron steel (the traditional, lowest-cost choice), or advanced ceramic – zirconia, alumina, or silicon carbide – for near-zero metal contamination. The mill itself (also called a three-roll mill machine, triple roll mill machine, or simply 3 roll mill) runs three horizontally-mounted rollers at different speeds, whether it’s a three roll mill for pigment grinding or a line dispersing electronic pastes.

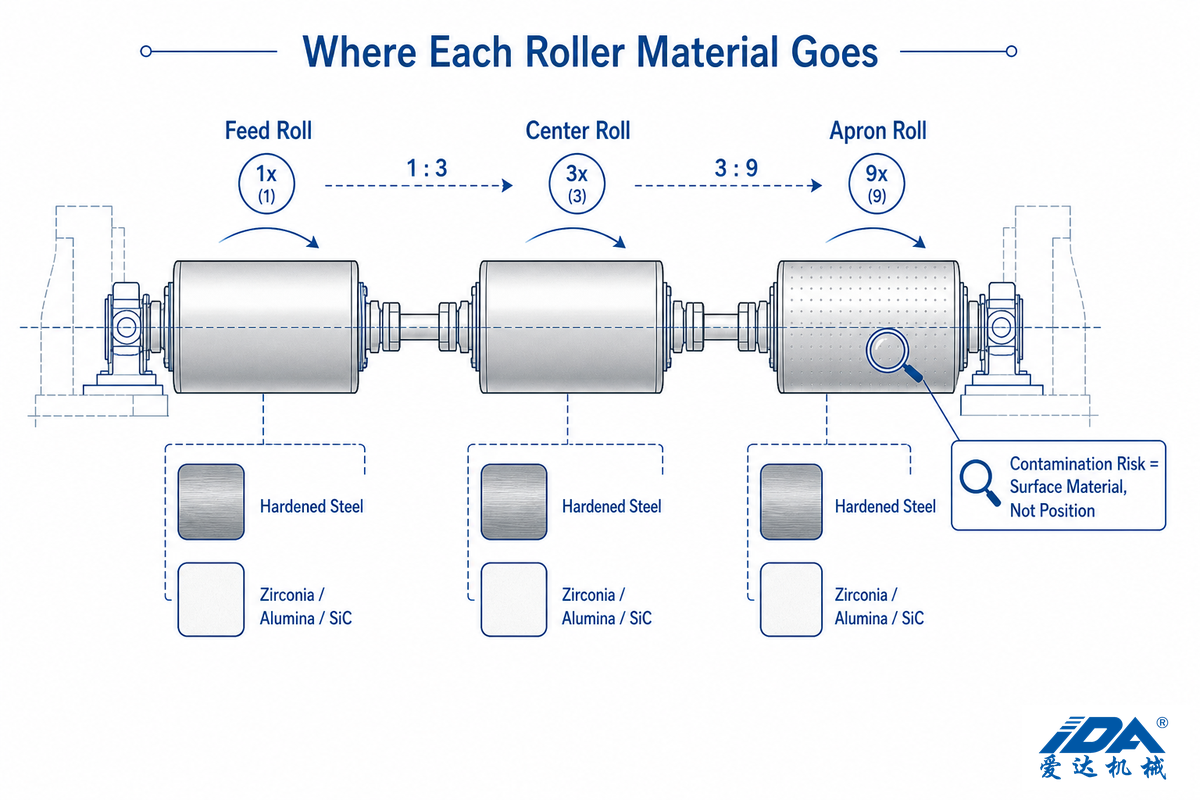

One roller-often called the feed roll, the first roll, or front roll-slowly turns to accept your materials; as your materials are squeezed between the first roll and the middle roll (center roll or second roll), the shrinking gap and shear forces break down and disperse them. These dispersed materials are then transferred between the middle and the last roller-which also goes by the name of apron roll or third roll, depending on the manufacturer. Here, the narrowing gap is even tighter and rotation speeds are higher still, generating a fine dispersion or thin film ready for downstream processing. Your material will experience shear as it’s forced between rollers, so you need a roller surface that effectively transfers that shear for even dispersion-but there’s more to this choice than contamination risk. That high shear is what breaks down agglomerates and tightens particle size distribution as the rolls rotate, refining viscous materials-whether a high-viscosity paste or a thinner ink-down to a uniform particle size. Because all three rollers (the three horizontal rollers also described by their front roller, middle roller, and apron roller names) share the same basic geometry and spacing between adjacent rolls, best practices for any roller mill start with matching material to that mechanical reality.

• Hardened metal or cast iron rolls are a very low cost entry for bulk applications in paints, coatings, and some high-volume inks where slight contamination can be tolerated.
• Stainless steel rolls can be a good compromise if you’re working with materials that may come into contact with a small amount of moisture or certain chemicals, but don’t need absolute freedom from trace metals.
• Advanced ceramic rolls (such as those made of zirconia, alumina, or silicon carbide) provide extreme resistance to abrasion, eliminate the possibility of metal contamination in your products, and may have unique benefits in specialized applications involving aggressive media.

In a 2010 international patent filing (WO2010055099A1) for a three roll mill machine, the document explicitly outlines the usage of these machines for “grinding ceramic pastes” and conventional ink-dispersing processes with traditional rollers. This confirms that the use of advanced ceramic as roller material isn’t some niche option; it’s part of the same underlying three roll mill technology, used for decades, now. Keep in mind that for both ceramic and metal rollers, the finish on the roller surface is critical. Unevenness or scratching on the roller can cause streaking in your finished product, especially in applications like screen printing or in electronics-focused, thick-film inks, even if the underlying bulk material has years of wear left in it.

Does Your Industry Actually Need Zero-Contamination Ceramic Rollers?

Not all runs demand a premium for ceramic. Your industry needs zero-contamination ceramic rollers only if a stray metal particle would actually damage your product or violate a spec – cosmetics, pharmaceutical, electronics, and battery slurry manufacturers typically do; general ink, paint, and coating producers usually don’t. The question isn’t “which material is best?” – it’s how much contamination your product can tolerate. Before we even consider the price, we use this four-stage sorting system:

That’s exactly the logic behind IDA’s own Roller Material Selector – and below, we break down exactly how the tool calculates and weights these inputs.

Hardness, Wear Life, and Heat Resistance, The Numbers Behind the Choice

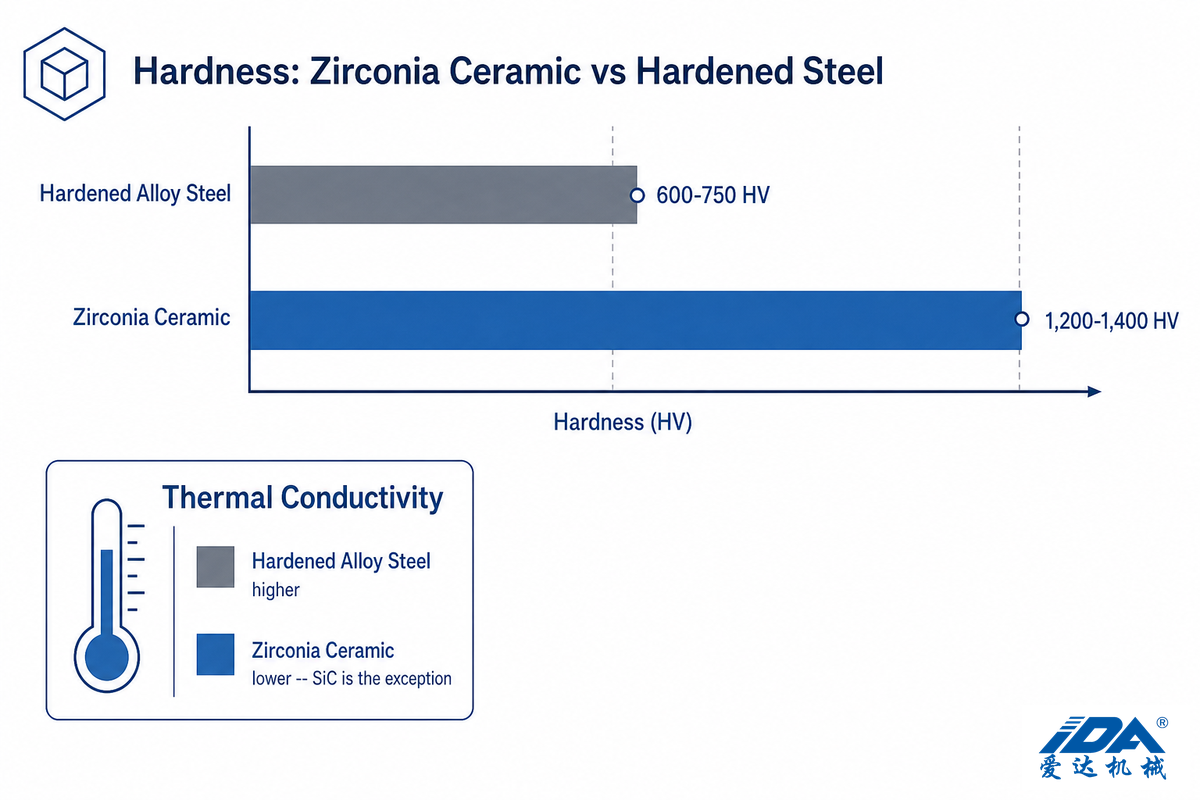

Hardness is the real predictor of wear life, and typically is the number sales people don’t bring up. Zirconia ceramic rollers consistently rate as Mohs 8-8.5 and have a Vickers hardness (HV) in the range of 1,200-1,400, while the hardened alloy roller steel ranges from about 55-62 HRC, which corresponds to 600-750 HV. That’s almost double the hardness, and wear hardness is the predominant factor affecting wear during abrasive rolling contact.

Zoomed out past the raw numbers, here’s the full steel-versus-ceramic picture in one table – the 9-Category Steel vs Ceramic Matrix we walk buyers through before they see a quote:

“The hardness number gets all the attention in a sales conversation, but the question we actually ask a buyer first is what happens if a stray metal particle ends up in their finished batch. That answer decides the material family before cost ever enters the discussion.”

— IDA engineering team

Across process industries where pigment dispersion is key-from printing inks and electronic thick film inks to heat-sensitive materials in pharmaceutical pastes-ultimate processed material quality depends on a roller surface which maintains its finish over countless passes, medium and high load, over high viscosity compounds. Ceramics’hardness superiority comes with a disadvantage that has to be faced: peer-reviewed materials science research on advanced ceramics also confirms that hard ceramic bodies are less resistant to shock from mechanical or rapid temperature fluctuations than are traditional metal rollers. A tool falling on the roller or rapid change in temperature could fracture the roll instead of steel, for example – the same compressive-failure mechanism that EN ISO 17162:2025’s compressive strength testing standard for fine ceramics exists to quantify.

Studies confirm zirconia and alumina have poor resistance to thermal shock and cycling; This in turn is the reason that more importance must be placed on controlling cooling water temperature with ceramic.

Can I Retrofit Steel Rollers to Ceramic on an Existing Three Roll Mill?

Generally yes, within limitations. Roll journals, bearing housings, and the drive train are usually designed to accommodate a range of roll diameters and weights rather than one specific material, so a ceramic roll set built to the same dimensions as your existing steel rolls will normally fit an existing mill frame. Two things are worth verifying before ordering, though.

First, confirm your apron knife and doctor blade hardness suit a ceramic apron roll – a blade that’s too hard can score ceramic faster than steel. Second, check whether your cooling water circuit has enough flow capacity, since ceramic’s lower thermal conductivity shifts more heat load onto active cooling. Most three-roll mill manufacturers, including IDA, can confirm frame compatibility from your mill’s model number.

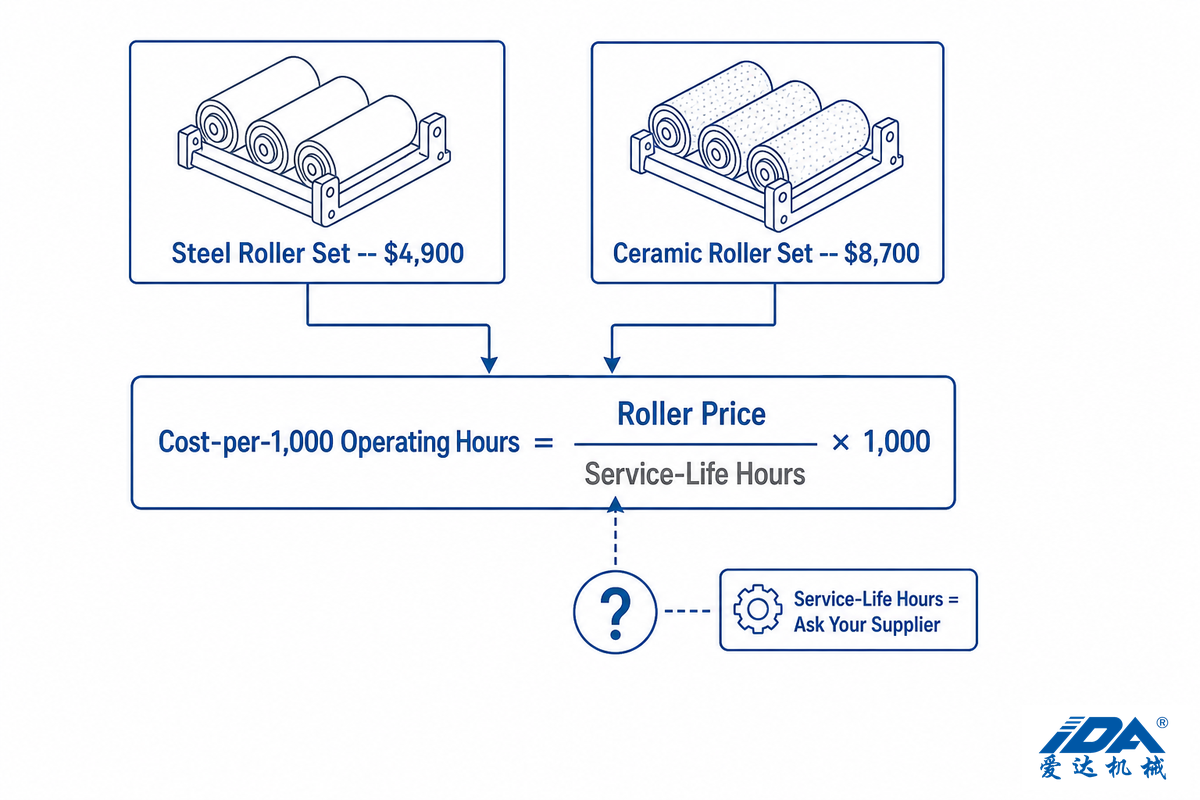

The Real Cost of Ceramic vs Steel Rollers (Cost-Per-Hour Model)

On the surface, ceramic rollers will always appear more expensive, and by purchase price, they are. One example provided for a set of two stainless-steel, 300-millimeter, 150-millimeter three-roll mill rolls was for a quote of $4,900. The corresponding quote for zirconia ceramic rollers of identical dimensions was $8,700 – a factor of roughly 1.8 times greater, at least according to this one data point. That single figure is a specific data point, not an industry average; whatever three roll mill price you’re quoted will vary according to roll diameter, face length and precision.

However, two key cost drivers work to push ceramic into the more economical position than the price tag alone would suggest: downtime and regrind frequency. Experts consistently advise that thermal-shock-sensitive materials require controlled handling to avoid premature wear, and that each roll swap costs a full shift’s worth of downtime (and thus, production), which most cost comparisons based on price per roll neglect to factor in.

How a Roller Material Selector Tool Actually Decides

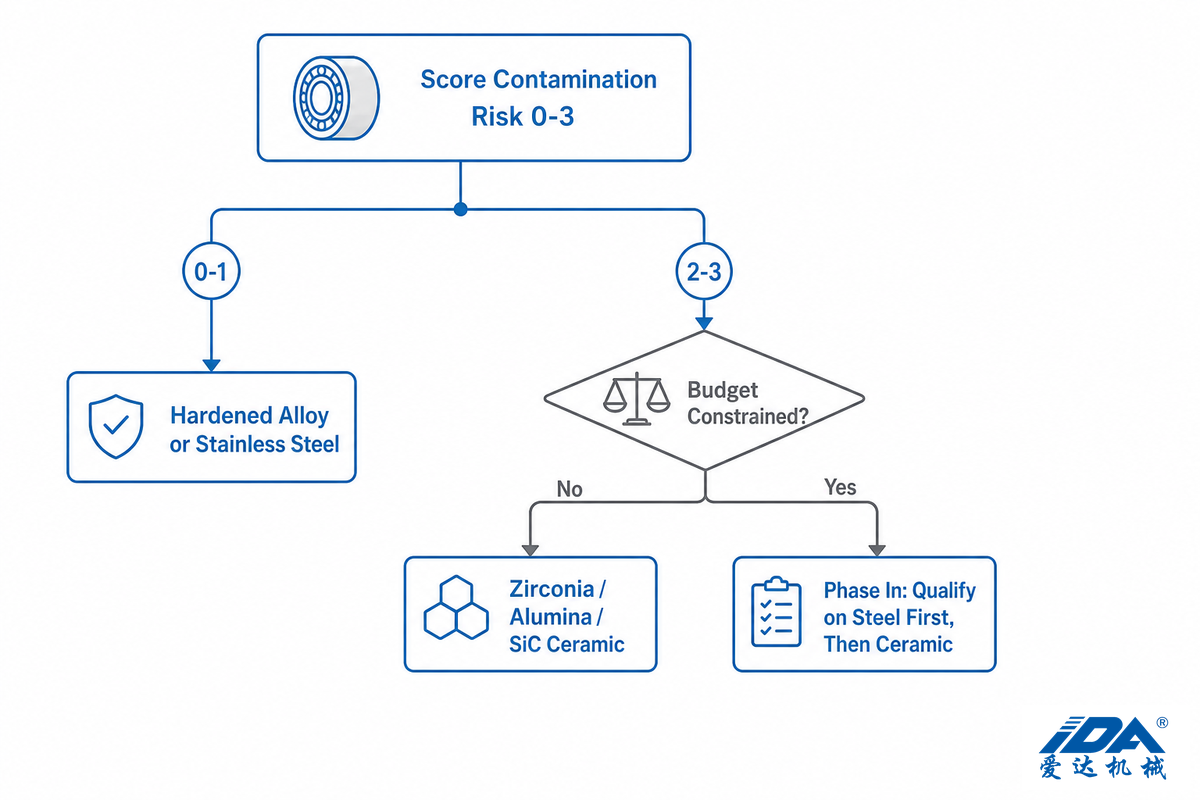

A roller material selector tool decides by weighing three inputs in order: contamination sensitivity first, then duty-cycle abrasiveness, then budget. If you’ve used IDA’s Roller Material Selector tool and wondered how it reached its recommendation, that’s roughly the calculation running behind it – and you can walk the same steps manually without opening the tool at all.

There’s no universally better choice here-the wrong conclusion is to automatically assume ceramic wins because it’s harder. The same materials principle shows up in ceramic-versus-steel bearing selection: ceramic components aren’t always better than steel: they win specifically where speed, low friction, or corrosion resistance matter, and lose on raw impact toughness and cost. The same logic applies to three roll mill rollers: match the material to the failure mode you’re actually trying to avoid, not to a blanket assumption that the harder, more expensive material is automatically the safer choice.

Maintenance and Lubrication Differences Between Ceramic and Steel Rollers

Beyond material, day-to-day care differs little. Two points of vigilance after a material switch, though – both trace back to the same NIST-documented thermal conductivity gap between ceramic and steel discussed above.

• Monitor water-cooling flow on ceramic – since ceramic’s heat conduction is lower, the water cooling jacket has to pick up a bigger part of the load that would otherwise be carried out by the roll body in steel.
• Check for chip and crack development on the roller ends following any hard stop or temperature fluctuation – shock-induced damage on ceramic shows up as chips, whereas steel damage is generally visible as gradually progressing scores.
• Re-torque rollers and check gaps to your standard maintenance intervals – this remains a function of your bearings, not the rollers.

Industry Outlook: Where Roller Material Technology Is Heading

What’s driving increased ceramic roller use isn’t a generic swing away from steel, but rather a concentration of growth in segments where metal contamination is a non-negotiable fact of life: battery slurries, high-purity electronic pastes, and pharmaceutical formulations are all intrinsically contamination-intolerant – often due to regulatory requirements or strict product specifications rather than inherent preference – and are growing more quickly than general industrial coatings. (For market-sizing context, market-research reports peg the overall grinding media market at around $8.35 billion in 2026, trending towards $13.6 billion by 2035 – this is an order of magnitude, not a precisely forecast market size, and indicates growth, but not exponential acceleration). The pressure behind that growth isn’t abstract: in battery slurry processing specifically, contamination risk is a real problem because a single stray metal particle can trigger an internal short circuit years into a finished cell’s service life, which is why OEM and regulatory specs have, since around 2024, increasingly written metal-contamination limits directly into the purchase order rather than leaving roller material to supplier discretion – a very different buying conversation than a general industrial production line has ever had to have. Equipment design is tracking the same direction: dispersion-mill patent filings covering ceramic paste grinding go back over a decade, and that engineering base is exactly what today’s contamination-driven demand is building on rather than starting fresh. So for a buyer, the simple message is this: if your process doesn’t fall into a clearly contamination-intolerant category, the “industry trend” won’t necessarily shift your steel-versus-ceramic decision; the trend is segment-specific, not ubiquitous.
