Hydraulic Discharge Machine
Hydraulic Discharge Machine: Industrial Ram Press Solutions
The IDA industrial hydraulic discharge press ensures optimal yield for high viscosity substances like lithium battery slurry, adhesives, and sealants. Developed to integrate seamlessly with planetary mixers and vacuum systems.
0+
Years Experience
0+
Global Clients
0%
Discharge Rate
0M+
CPS Viscosity
20,000 m²
Modern Manufacturing Base
50+ Countries
Global Service Network
30+ Engineers
R&D Team Excellence
24/7 Support
Technical Assistance

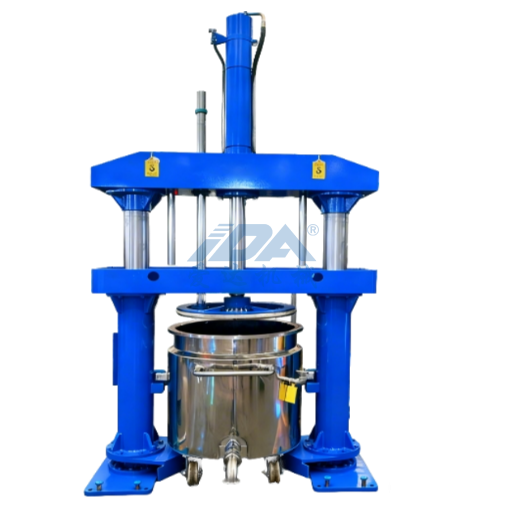

What is a Hydraulic Discharge Machine?
A hydraulic discharge machine, or hydraulic ram discharge press, is a hydraulic pressure machine that specifically designed to extract high viscosity materials from mixing vessels.
Our discharge presses are engineered to integrate seamlessly with planetary mixers and multi-shaft vacuum mixers. The hydraulic system drives the platen into the vessel, ensuring efficient extrusion for heavy pastes.
High viscosity discharge equipment is a must for processing materials that cannot flow due to their density – such as battery electrode slurry, silicone sealant, adhesive compounds, cosmetic creams, and food pastes.
Wide Viscosity Range
The machine can take care of the materials with the viscosity of ten thousand up to over one million CPS efficiently.
Precision Sealing System
A sealing ring that has been made according to the specifications keeps on the walls of the vessel during the whole discharge process.
Adjustable Speed Control
The speed can be adjusted in a variable manner by regulating the hydraulic system pressure.
Shared Vessel Design
It works with the vessels of the planetary and vacuum mixers.
Technical Specifications
Technical Parameters of Discharge Press
IDA hydraulic ram discharge press is exceptionally designed as a specialized non-standard chemical machine, which can be nicely worked with planetary mixers, power mixers, and high-speed dispersers, thus making material extraction very efficient.
Key Features
01
Viscosity Range
Capable of dealing with super high viscosity products up to 2,000,000 cPs including lithium battery electrode slurry, MS sealants, and silicone compounds.
02
Drive Options
Pneumatic and hydraulic are the two configurations available for you to choose from depending on your facility needs.
03
Material Contact
SS304/SS316L stainless steel for the whole construction of the machine, and PTFE or custom sealing materials available.
04
Control System
PLC-controlled with touchscreen HMI; the manual override function is there too.
05
Discharge Ports
Multiple configurations possible; bottom valve discharge or flexible hose connection from platen.
Standard Model Specifications
| Model | Capacity | Pressure | Power |
|---|---|---|---|
| IDA-HD-5 | 5L | 0-45 PSI | 1.5 kW |
| IDA-HD-20 | 20L | 0-60 PSI | 2.2 kW |
| IDA-HD-50 | 50L | 0-60 PSI | 3.0 kW |
| IDA-HD-100 | 100L | 0-75 PSI | 4.0 kW |
| IDA-HD-200 | 200L | 0-75 PSI | 5.5 kW |
| IDA-HD-500 | 500L | 0-90 PSI | 7.5 kW |
| IDA-HD-1000 | 1000L | 0-90 PSI | 11 kW |
| IDA-HD-2000 | 2000L | Custom | 15 kW |
Product Types
Precision Hydraulic Ram Press for Sale
Select a model below to view specific configurations and advantages for your production needs.
Laboratory & Pilot Scale

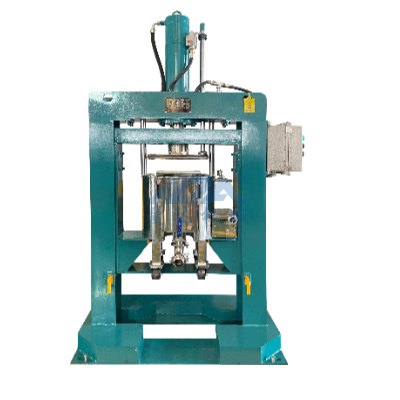

30L Hydraulic Discharge Press
Primary utilized in laboratories and pilot plants. Perfect for handling viscous materials like sealants and inks when combined with proper mixing.
Capacity
30L
Power
2.2 kW
Stroke
500mm
Operation
Hydraulic
Core Product Advantages
Effective Cleaning
Auto-expanding extrusion disc maintains wall contact, drastically reducing residue and cleaning time.
Less Labor Intensity
Automated hydraulic extrusion eliminates manual scooping and feeding.
Adaptable Control
Features adjustable extrusion speeds to match downstream filling requirements.
Wide Applicability
Specifically designed for difficult-to-feed high viscosity pastes and adhesives.
Industrial Mass Production

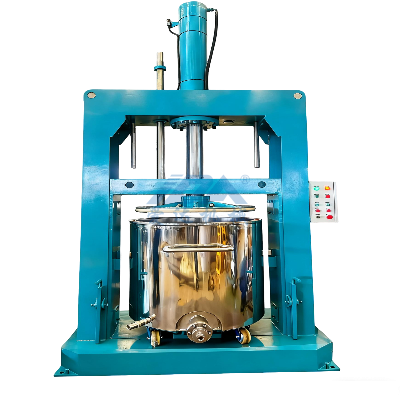

500L Hydraulic Extruder
High-capacity industrial machine for batch production lines. Usually paired with a 500L planetary mixer for large-scale extrusion.
Capacity
500L
Power
~5.5 kW
Stroke
1000mm
Plate Dia.
1000mm
Core Product Advantages
Industrial-scale Capacity
500L design meets continuous mass production needs, dramatically increasing efficiency.
High Force Extrusion
Powerful hydraulic system handles extremely high viscosity materials easily.
Safety & Durability
Includes safety protection devices and solvent-resistant seals for long service life.
Process Compatibility
Seamlessly connects with filling machines to form a complete automated line.
Hydraulic Discharge Machine Selection Tools
Use our free calculators to find the right hydraulic discharge machine and calculate your potential material savings.
Select Your Industry
Different industries have specific requirements for hydraulic discharge machine configurations.
Battery & Energy
Lithium slurry, electrode paste
Adhesives & Sealants
Silicone, epoxy, PU
Cosmetics
Creams, lotions, mascara
Pharmaceutical
Ointments, gels, devices
Food Processing
Chocolate, paste, sauces
Chemical & Coatings
Inks, coatings, resins
Material Properties
Tell us about your material characteristics for optimal hydraulic discharge machine matching.
Capacity Requirements
Specify your production volume to match the right hydraulic discharge machine size.
Special Requirements
Select any special features required for your hydraulic discharge machine.
Vacuum Operation
Air-free discharge
Sanitary/GMP
FDA, cGMP compliance
Explosion Proof
ATEX certified
Full Automation
PLC control
Your Recommended Hydraulic Discharge Machine
Based on your requirements
★ Best Match
HDP-300
Hydraulic Ram Discharge Press with vacuum capability.
100-300L
Capacity
120 PSI
Pressure
800K CPS
Max Viscosity
99%+
Recovery
Alternative Options:
HDP-200
Capacity: 50-200L
Compact
Budget
HDP-500V
Capacity: 300-500L
Vacuum
Large
Enter Your Production Data
Daily Batch Volume (L)
1,600 L
Material Cost ($/L)
$25/L
Current Waste Rate (%)
15%
Operating Days/Year
250 days
Quick Industry Presets
❌ Current Method
Annual Waste
60,000 L
Lost due to residue
✓ With Hydraulic Discharge Machine
Annual Waste
4,000 L
Only 1% residue
Material Recovery Comparison (Per 100L)
Your Potential Annual Savings with Hydraulic Discharge Machine
$1,400,000
By reducing waste from 15% to 1%
Challenges&Solutions
High Viscosity Material Discharge System Challenges, Our Solutions
Viscous materials are processed in manufacturing facilities which are causing critical operational challenges. The technology of IDA industrial mixer discharge press has proven to be effective solutions.
Common Challenges
IDA Solutions
Material Waste & Low Yield
Traditional methods leave 10-20% of valuable material stuck to vessel walls, increasing production cost and reducing profitability.
1
Maximum Product Yield (>98%)
Precision-engineered sealing ring system keeps tight integration with vessel walls during entire discharge.
- Replaceable pressure plate
- No sludge after discharge
- Retrieve costly product
- Cut raw material costs
Equipment Incompatibility
Discharge equipment doesn't match planetary mixer or multi-shaft mixer dimensions, causing seal failures and material leaking.
2
Perfect Equipment Integration
IDA hydraulic discharge presses designed to work seamlessly with planetary and multi-shaft vacuum mixers.
- Common vessel design
- Specific plate diameters
- Hydraulic & pneumatic options
- Multiple mounting types
Slow Discharge Speed
High viscosity materials (>500,000 CPS) are non-flowing. Gravity-fed or pump systems struggle with silicone sealant, battery slurry, adhesives.
3
Efficient High Viscosity Handling
Robust hydraulic system handles materials up to 1,000,000 CPS with controlled pressure and speed.
- Wide pressure range
- Adjustable discharge speed
- Stable material flow
- Slurry, sealant, paste ready
Difficult Cleaning & Changeover
Complex equipment takes long time to clean. Long changeover periods between batches reduce efficiency and increase labor costs.
4
Easy Cleaning & Maintenance
Simple structural design allows fast cleaning and batch changeover with minimal downtime.
- Smooth surfaces
- Quick-release sealing
- Reduced labor intensity
- Fast product changeover
Uncertain Equipment Selection
Hard to determine right specifications for your material's viscosity, vessel size, and production requirements.
5
Expert Selection Guidance
Free consultation from our engineering team to determine most suitable specifications for your application.
- Viscosity evaluation
- Vessel compatibility check
- Capacity planning
- Custom solution design
Overseas Supplier Concerns
Concerns about after-sales support, spare parts availability, and communication barriers from international manufacturers.
6
Reliable Global Support
Established support network provides quick service no matter where you are located.
- English-fluent team
- Remote troubleshooting
- Spare parts inventory
- Installation support
Ready to Solve Your Discharge Challenges?
Get a free consultation with our engineering team and find the perfect solution.
Machine Insights

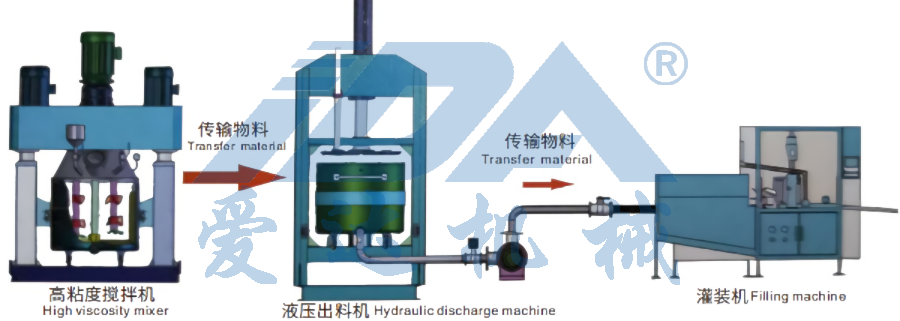

How Does a Hydraulic Discharge Machine Work?
Understanding the Working Principle of the Hydraulic Ram Discharge Press of a structure diagram of IDA Hydraulic Ram Discharge Machine connected to a Planetary Mixer, in terms of Pascal's Law, helps a learner appreciate the significance of key components in its energy transformation.
Four steps ensure the complete removal of the product with maximum efficiency:
Step 01
Positioning
Place the mixing vessel within the discharge press frame and secure it in position.
Step 02
Plate Descent
The hydraulic system lowers the pressure plate right into the vessel, an act that seals the ring as well.
Step 03
Discharge
The hydraulic pressure then forces the material out through the discharge outlet at a controlled flow rate.
Step 04
Extraction
The scraping of the sealing ring against the walls permits in excess product recovery of above 98%.
Hydraulic discharging machines are generally divided into lifting type and fixed type; they are realized by a uniquely designed hydraulic system.
The Lifting Type
Can lift the barrel support frame separately while the pressing plate can be lifted up and down to press the material, convenient for receiving the material when discharging from the bottom.The Fixed Type
Generally uses a hose to discharge the material at the discharge port of the pressing plate, or a bottom valve to discharge the material; the lifting speed can be adjusted by the pressure value.
Technical Specifications
| Model | YLJ30 | YLJ50 | YLJ100 | YLJ200 | YLJ500 | YLJ800 | YLJ1000 |
|---|---|---|---|---|---|---|---|
| Volume (L) | 30 | 50 | 100 | 200 | 500 | 800 | 1000 |
| Power (kw) | 2.2 | 2.2 | 4 | 4 | 5.5 | 7.5 | 11 |
| Platen Dia. | Non-standard customization available | ||||||
| Stroke (mm) | 500 | 500 | 700 | 700 | 1000 | 1000 | 1100 |
| Pressure (Mpa) | 12 | 12 | 25 | 45 | 60 | 80 | 100 |
| Seal Material | Silicone Rubber / Teflon | ||||||
| Lift Method | Hydraulic lift (single/double Hydraulic column) | ||||||
| Control | Button or PLC control | ||||||
Watch the Machine in Action
🔬 Engineering Tool
Viscosity Unit Converter
Convert between different viscosity units used in industrial mixing. Essential for specifying hydraulic discharge equipment requirements.
Copied!
Centipoise (cP)
50,000
Most common unit
Copied!
Pascal-second (Pa·s)
50
SI unit
Copied!
Millipascal-sec (mPa·s)
50,000
= cP
Copied!
Poise (P)
500
CGS unit
Copied!
kg/(m·s)
50
= Pa·s
Copied!
lbf·s/ft² (Reyn)
1.044
Imperial
Copied!
Stokes (St)*
500
*Kinematic (ρ=1)
Copied!
Centistokes (cSt)*
50,000
*Kinematic (ρ=1)
Common Material Viscosity Reference
| Material | Viscosity (cP) | Discharge Method |
|---|---|---|
| Water | 1 | Gravity |
| Honey | 2,000 - 10,000 | Gravity / Pump |
| Cosmetic Cream | 10,000 - 50,000 | Hydraulic Press |
| Lithium Battery Slurry | 50,000 - 200,000 | Hydraulic Press |
| Silicone Sealant | 100,000 - 500,000 | Hydraulic Press |
| Thick Adhesive Paste | 300,000 - 800,000 | Hydraulic Press |
| Electrode Paste (Dry) | 500,000 - 1,000,000+ | High-Pressure Hydraulic |
Industry Applications
Industrial Discharge Press Equipment Applications by Industry
The IDA hydraulic discharge machines are used across various industries that need material handling of high viscosity with high efficiency.
★ High Growth
Lithium Battery
Cathode & anode materials' electrode slurry discharge.
Adhesives & Sealants
Silicone, MS polymer, polyurethane, epoxy systems.
Cosmetics & Care
Creams, lotions, gels, toothpaste, hair products.
Pharmaceutical
Ointments, topical creams, oral gels, transdermal patches.
Coatings & Inks
Industrial coatings, UV inks, specialty paints.
Food Processing
Sauces, pastes, jams, chocolate, confectionery.
Electronics
Thermal paste, conductive adhesives, encapsulants.
Specialty Chemicals
Rubber compounds, plastisols, ceramic slurries.
Case Studies
Hydraulic Press Machine Customer Success Stories
Let us show you how our automatic hydraulic discharge machine solves viscosity material production handling problems for manufacturers around the world.
🔋 Lithium Battery Industry
EV Battery Manufacturer Achieves 99.2% Slurry Yield with Custom Hydraulic Discharge System
How a leading EV battery producer eliminated material waste and increased production capacity by 40%
Client Background
The company PowerCell Technologies Inc. is a rapidly expanding manufacturer of Texas-based lithium ion batteries. The company provides battery cells to producers in the electric vehicle and energy storage system industries. With more than 2 GWh of annual production, PowerCell Technologies Inc. needed dependable machinery for the processing of electrode slurry materials, which included cathode (NMC, LFP) and anode (graphite) pastes, with viscosities in the range of 20,000 to 80,000 cPs.
The Challenge
- Severe Material Loss: The company had a gravity discharge system, which is an emptying system that uses gravity to work. The company's system only reached an 85% to 90% product yield, meaning there was lots of slurry material waste, and increased costs for the raw materials.
- Air Bubble Contamination: When the slurry is used to coat a part of the battery, air bubbles can cause performance issues in the battery. Manual scraping introduced air bubbles into the slurry, which was a problem.
- Long Batch Changeover: The process of scraping the mixer tank was very tedious and took over 45 minutes to clean. This created a bottleneck for the customers and drew the tank down over 45 minutes to fill. This was an issue for customers.
- Inconsistent Quality: The quality of the slurry was often inconsistent because the discharge pressure was not the same from one batch to the next. This made it very hard to achieve consistent electrode coating, which is an important part of the battery overall performance.
Our Approach
In collaboration with PowerCell's engineering team, we devised our own design and created a custom press system, with hydraulic rams and discharge systems, integrated with the existing 1000L double planetary mixer:
- Vacuum-Sealed Discharge: A completely vacuum sealed environment during discharge ensures the prevention of any air bubbles.
- Programmable Pressure Control: A PLC-controlled hydraulic with programmable pressure control (0-60PSI) permits varying control depending on the different slurry mix formulations.
- PTFE-Coated Press Plate: With a non-stick surface, material retention is eliminated and cleaning is simplified.
- Automated Cleaning Cycle: A built-in CIP (Clean-in-Place) system lessens the time needed for changeover.
🔧 Equipment Specifications - Model HDP-1000V (Custom Battery Slurry Series)
Working Capacity1000 Liters
Max. Discharge Pressure60 PSI (4.1 bar)
Applicable Viscosity10,000 - 500,000 cPs
Vacuum Level-0.098 MPa
Press Plate MaterialSS316L + PTFE coating
Control SystemSiemens S7-1200 PLC
Safety FeaturesATEX Zone 2, E-stop
HMI10" Touchscreen
Results & Impact
99.2%
Product Yield Rate
(up from 87%)
(up from 87%)
40%
Increase in
Production Capacity
Production Capacity
15 min
Batch Changeover
(down from 45 min)
(down from 45 min)
$380K
Annual Material
Cost Savings
Cost Savings
The hydraulic discharge system has transformed our slurry handling process. We've almost completely cut down on material waste and vacuum discharge has completely solved our air bubble contamination. The ROI was in just 8 months. We are now ordering two more units for our new production line.
Location
Houston, TX, USA
Project Duration
12 weeks
Installation
On-site training included
After-Sales
24/7 support + 2-year warranty
🏭 Sealant & Adhesive Industry
Seal Silicone Sealant Producer Reduces Material Waste by 95% with Hydraulic Ram Discharge Press
Complete production line upgrade for a construction sealant manufacturer processing ultra-high viscosity materials
Client Background
SealPro Industries GmbH is a construction sealant manufacturer of medium company size headquartered in Germany with production plants for the European market. They are producers of one and two-component silicone sealants, polyurethane adhesives, and MS polymer products. The product viscosities reach from 200,000 up to more than 1,200,000 cPs – one of the most difficult materials to process in the industry.
The Challenge
- Extreme Viscosity Handling: Their MS polymer sealants exceed 1,000,000 cPs – far beyond the capability of conventional pump systems.
- Loss of Materials: 8-12% of every batch was trapped in the mixer. This equates to over €450,000 in waste annually.
- Safety of Employees: Cleaning the tanks manually put employees in the path of chemical fumes and the manual work caused injuries.
- Equipment Compatibility: Required a discharge system that was adaptable to their 500L and 1500L planetary mixers from a variety of manufacturers.
Our Solution
We provided a complete hydraulic discharge press system specially developed for sealant applications with ultra-high viscosity:
- High-Force Hydraulic System: Custom 80-ton hydraulic cylinder supplies various levels of pressure for materials up to 2,000,000 cPs
- Universal Mounting Design: No tools adjustable frame fits both existing mixer models
- Heated Press Plate: Integrated heating systems (up to 80°C) reduce viscosity for a faster flow during discharge
- Enclosed Operation: Workers can remain completely safe during discharge with our full containment design
🔧 Equipment Specifications - Model HDP-1500HV (Heavy-Duty High Viscosity Series)
Working Capacity500L & 1500L (dual)
Max. Discharge Pressure80 PSI (5.5 bar)
Applicable Viscosity100,000 - 2,000,000 cPs
Heating System40-80°C adjustable
Press Plate MaterialHardened SS304 + coating
Frame TypeFloor-mounted gantry
Height AdjustmentMotorized
CertificationsCE, ISO 9001:2015
Results & Impact
98.5%
Product Yield Rate
(up from 88%)
(up from 88%)
€520K
Annual Material
Cost Savings
Cost Savings
Zero
Worker Exposure
Incidents
Incidents
6 mo
Return on
Investment
Investment
This solution, out of all three suppliers, provided the greatest quality engineering to withstand our most viscous products. The heated press plate was revolutionary for our MS polymer line. What impressed us most was the willingness of the team to customize the mounting system for our existing mixers, which saved us a lot in capital expenditure.
Location
Düsseldorf, Germany
Project Duration
16 weeks
Installation
EU technician supervised
Support
German documentation
💄 Cosmetics & Personal Care
Premium Skincare Brand Scales Production 3X with GMP-Compliant Discharge System
Fast Growing Cosmetics Company Supports Quality With Increased Output
Client Background
Lumière Cosmétiques is a premium skincare brand from France, known for high-end products like creams, serums, and treatment masks. With a new key account in retail, they were suddenly faced with the challenge of scaling up production to a monthly capacity of 8,000 kg. Previously, they had been producing 2,000 kg. Their products are rich emulsions with viscosities between 50,000-150,000 cPs, and they required gentle handling to maintain the active ingredients and the premium texture expected by end consumers.
The Challenge
- Potential Impact on Product Integrity: With the premium creams, traditional pump discharge would shear the delicate emulsions, negatively impacting their texture and stability.
- Meeting GMP Compliance: EU GMP and FDA 21 CFR cosmetic manufacturing guidelines apply to all the equipment in use.
- Contamination: No cross-contamination between different formulations.
- Space Constraints: The limited square footage of their current location necessitated a more compact solution for the equipment.
Our Solution
We built a customized, pharmaceutical-grade hydraulic discharge press for the production of cosmetic creams:
- Gentle Discharge Technology: Emulsions are preserved by low, uniform contraction and shear.
- Full 316L Stainless Steel: Fully GMP compliant, Interior Mirror-polished Ra≤ 0.4μm finish
- Tool-Free Disassembly: Quick-release press plate permits deeper cleaning seamless between batches
- Compact Platform Design: Elevated platform type conserves 40% floor space relative to direct mounted alternatives
🔧 Equipment Specifications - Model HDP-300P (Pharmaceutical/Cosmetic Grade)
Working Capacity300 Liters
Max. Discharge Pressure35 PSI (2.4 bar)
Applicable Viscosity10,000 - 300,000 cPs
Material Contact PartsSS316L, Ra≤0.4μm
Sealing MaterialFDA-compliant silicone
Cleaning SystemCIP-ready + spray ball
CertificationsCE, FDA, EU GMP
DocumentationIQ/OQ provided
Results & Impact
3X
Production Capacity
Increase
Increase
100%
GMP Audit
Pass Rate
Pass Rate
97.8%
Product Yield
Rate
Rate
20 min
Cleaning Time
Per Batch
Per Batch
In the premium cosmetic market, product excellence is crucial. Initially, we had reservations about procuring equipment from China, however, the team demonstrated their proficiency in the design and production of pharmaceutical-grade equipment. The mirror-polished finish was flawless and during the factory audit, our quality team was pleased. The best part was our creams preserved their rich texture – our clients appreciate the difference.
Location
Lyon, France
Project Duration
10 weeks
Validation
IQ/OQ documentation
Compliance
EU GMP & FDA
![Filling Machine Types, Working Principles & Selection Guide [2026]](https://idaequipment.com/wp-content/uploads/2026/04/1-2-150x150.png)
